D7b5 — D dominant seventh flat five chord
A dominant seventh chord with a flattened fifth. The same notes as the dominant seventh chord a tritone away.
- 1 = D
- 3 = F#
- b5 = Ab
- b7 = C
- Symbol
- D7b5
- Root
- D
- Quality
- Dominant seventh flat five
- Family
- altered
- Notes
- D F# Ab C
- Degree formula
1 3 b5 b7- Semitones from the root
0 4 6 10- Distinct pitch classes
- 4
- Interval structure
- Stacked from the root: 4 semitones, 2 semitones, 4 semitones
- Notation
- Written 7b5. An altered dominant, usually resolving down a fifth.
- Key
- D · D major / B minor key signature
Formula
The chord tones in order from the root, with the interval each one forms above it.
| Degree | Note | Semitones | Interval from the root |
|---|---|---|---|
| 1 | D | 0 | Perfect unison |
| 3 | F# | 4 | Major third |
| b5 | Ab | 6 | Tritone |
| b7 | C | 10 | Minor seventh |
Inversions
An inversion is the same set of notes with a different one in the bass. The last column gives the distance of each note above the bass note, in semitones.
| Inversion | Bass note | Degree in the bass | Notes above the bass | Semitones above the bass |
|---|---|---|---|---|
| root position | D | 1 | D – F# – Ab – C | 0 4 6 10 |
| first inversion | F# | 3 | F# – Ab – C – D | 0 2 6 8 |
| second inversion | Ab | b5 | Ab – C – D – F# | 0 4 6 10 |
| third inversion | C | b7 | C – D – F# – Ab | 0 2 6 8 |

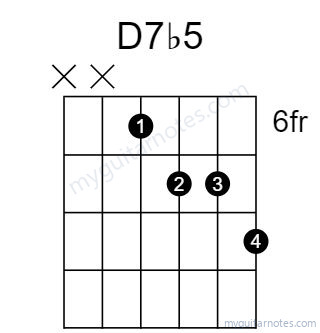

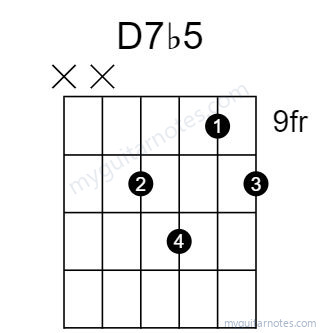

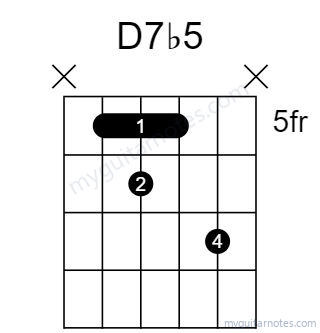

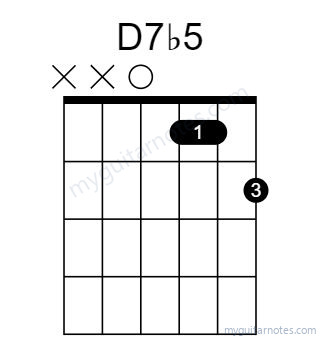

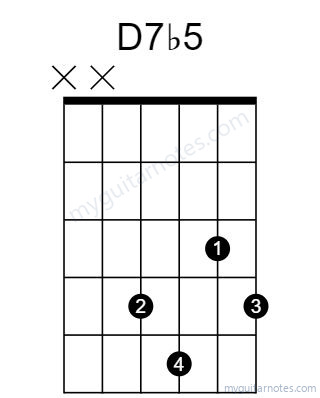

Playable voicings
These shapes were found by searching the fretboard of a standard-tuned guitar (E A D G B E) rather than copied from a chord book. The search allows every string to sound or to be muted, rejects any shape with a muted string between two sounding strings, rejects any shape whose fretted notes span more than four frets (a five-fret window), requires every chord tone to be present, and then sorts what remains with root-position shapes first and the most compact, lowest shapes next. The shapes shown are the first six of that ordering; other orderings are possible at the same frets.
| # | Shape (low string first) | Notes | Degrees | Bass | Span (frets) | Sounding strings |
|---|---|---|---|---|---|---|
| 1 | 10-9-10-11-9-10 | D F# C F# G# D | 1 3 b7 3 b5 1 | D | 2 | 6 |
| 2 | 10-11-10-11-9-10 | D G# C F# G# D | 1 b5 b7 3 b5 1 | D | 2 | 6 |
| 3 | 10-9-10-7-9-8 | D F# C D G# C | 1 3 b7 1 b5 b7 | D | 3 | 6 |
| 4 | 10-9-10-7-9-10 | D F# C D G# D | 1 3 b7 1 b5 1 | D | 3 | 6 |
| 5 | 10-9-10-11-9-8 | D F# C F# G# C | 1 3 b7 3 b5 b7 | D | 3 | 6 |
| 6 | 10-11-10-11-9-8 | D G# C F# G# C | 1 b5 b7 3 b5 b7 | D | 3 | 6 |
Shape numbers run from the lowest string to the highest, so the left-hand number is the sixth string (low E) in standard tuning. Multiple shapes are listed because a chord can be voiced several ways, and because a lower position is not always the better sounding one.
Related chords and scales
- KeyEverything in D
- ScaleD lydian dominant
- ChordD7
- ChordAb7b5
